What are roller troughs

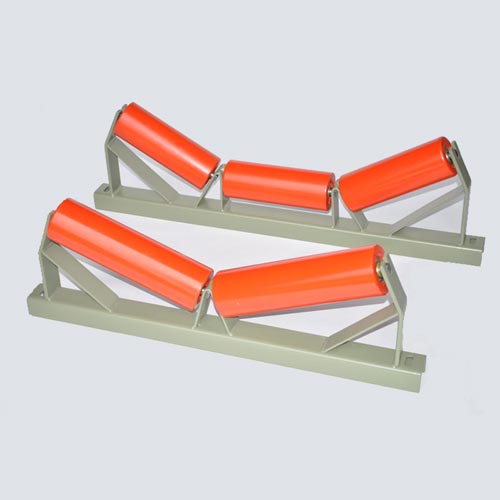

Roller troughs (troughing idlers) are steel frames for mounting the carrying rollers of belt conveyors, giving the belt a troughed shape to carry bulk materials without spillage to the sides. They come in two versions — 3-roller (a horizontal centre roller plus 2 angled side rollers) for a wider range of applications, and 2-roller (symmetrically angled, no centre roller) for more compact conveyors.
The angle of the side rollers is adjustable to customer request — from 10° to 45° on the 3-roller version and from 10° to 40° on the 2-roller version — which determines the shape and capacity of the belt trough.
Technical data — 3-roller version
| Belt width (mm) | A (mm) | L (mm) | H1 (mm) | H2 (mm) | C (mm) | S (mm) |
|---|---|---|---|---|---|---|
| 400 | 165 | 700 | 77 | 45 | 60 | 4 |
| 500 | 200 | 800 | 77 | 45 | 60 | 4 |
| 650 | 250 | 950 | 77 | 45 | 60 | 4 |
| 800 | 315 | 1150 | 77 | 45 | 60 | 4 |
| 1000 | 380 | 1350 | 77 | 50 | 100 | 5 |
| 1200 | 465 | 1600 | 77 | 50 | 100 | 5 |
Technical data — 2-roller version
| Belt width (mm) | A (mm) | L (mm) | H1 (mm) | H2 (mm) | C (mm) | S (mm) |
|---|---|---|---|---|---|---|
| 300 | 200 | 600 | 77 | 45 | 60 | 4 |
| 400 | 250 | 700 | 77 | 45 | 60 | 4 |
| 500 | 315 | 800 | 77 | 45 | 60 | 4 |
| 650 | 380 | 950 | 77 | 45 | 60 | 4 |
| 800 | 465 | 1150 | 77 | 45 | 60 | 4 |
Frequently asked questions
When is a 3-roller vs a 2-roller version chosen?
The 3-roller version is used for general applications across a wider belt range; the 2-roller version is more compact and mainly used on small conveyors with belts up to 800mm.
What side roller angles are available?
From 10° to 45° on the 3-roller version and from 10° to 40° on the 2-roller version — to customer request.
What is the price of a roller trough?
Contact Nibora Ltd. for a quote based on the belt width and number of rollers.
