COLUMBUS elevator buckets — metal and plastic DIN 15232

Metal elevator buckets COLUMBUS DIN 15232

COLUMBUS metal elevator buckets are manufactured to DIN 15232, in deep form and open form, with 14 sizes — from L=80 to L=400 mm. Used for transporting grain, flour, fodder, cement and other bulk materials in bucket elevators.

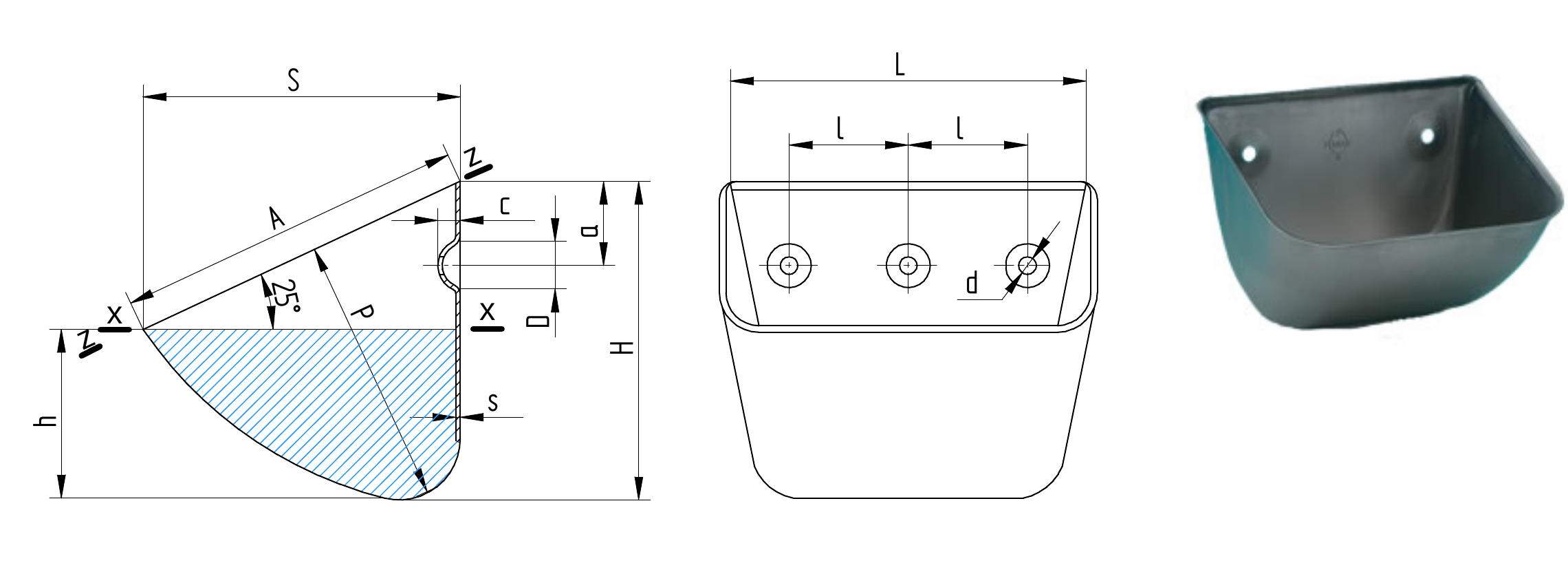

Deep Form

Metal elevator buckets COLUMBUS DIN 15232

Click to enlarge

L	S	H	h	A	P	c	a	l	d	D	Holes	X-X (l)	Z-Z (l)	1mm (kg)	1.5mm (kg)	2mm (kg)	buckets/m
80	80	80	43	86	66	3	23	40	7	22	2	0.14	0.25	0.14	—	—	10
100	90	92	49	99	76	3	25	50	8	24	2	0.26	0.41	0.16	—	—	8
120	100	105	58	110	86	4	26	70	8	25	2	0.45	0.63	0.23	—	—	7
140	112	117	63	122	97	4	30	90	8	25	2	0.6	0.96	0.3	—	—	6.5
160	124	128	70	136	104	4	35	100	9	28	2	0.75	1.2	—	0.55	—	6
180	130	135	75	141	112	4	35	115	9	28	2	1	1.55	—	0.65	—	5.5
200	138	145	80	152	122	5	40	130	9	34	2	1.3	2.15	—	0.8	—	5
225	144	153	86	157	125	5	45	70	9	34	3	1.5	2.5	—	0.92	—	4.5
250	150	160	90	164	132	6	45	77	9	34	3	1.85	3.1	—	1.05	—	4.5
275	155	165	93	168	136	6	45	95	11	34	3	2.3	3.7	—	1.2	—	4
300	160	170	95	175	145	6	50	105	11	38	3	2.7	4.5	—	1.34	—	4
325	172	180	98	191	152	7	55	115	11	38	3	3.2	5.5	—	1.55	—	3.5
350	185	190	104	204	160	7	55	90	11	38	4	3.8	6.5	—	1.77	—	3.5
400	200	207	114	215	173	7	70	100	11	38	4	5.3	8.7	—	—	2.9	3

Open Form

L	L1	S	H	h	A	P	c	a	l	d	D	Holes	X-X (l)	Z-Z (l)	1mm (kg)	1.5mm (kg)	2mm (kg)	buckets/m
80	91	75	67	24	90	50	3	23	40	8	22	2	0.13	0.25	0.14	—	—	10
100	114	90	80	31	106	63	3	25	50	8	24	2	0.16	0.36	0.16	—	—	8
120	133	106	96	36	124	80	4	26	70	8	25	2	0.3	0.68	0.23	—	—	7
140	153	116	105	39	138	90	4	30	90	8	25	2	0.4	0.88	0.3	—	—	6.5
160	174	125	112	42	148	90	4	35	100	9	28	2	0.55	1.0	—	0.62	—	6
180	195	133	120	46	159	97	4	35	115	9	28	2	0.65	1.45	—	0.75	—	5.5
200	217	141	127	48	165	105	5	40	130	9	34	2	0.8	1.85	—	0.9	—	5
225	240	150	134	51	176	106	5	45	70	9	34	3	1.1	2.3	—	1.0	—	4.5
250	265	160	142	53	187	114	6	45	77	9	34	3	1.4	3.0	—	1.1	—	4.5
275	292	170	151	57	196	122	6	45	95	11	34	3	1.8	3.6	—	1.35	—	4
300	317	178	158	60	207	128	6	50	105	11	38	3	2.0	4.2	—	1.6	—	4
325	344	185	166	64	215	134	7	55	115	11	38	3	2.4	5.5	—	1.8	—	3.5
350	370	192	173	66	223	140	7	55	90	11	38	4	2.75	6.25	—	2.05	—	3.5
400	422	200	180	70	232	146	7	70	100	11	38	4	3.5	7.75	—	—	3.2	3

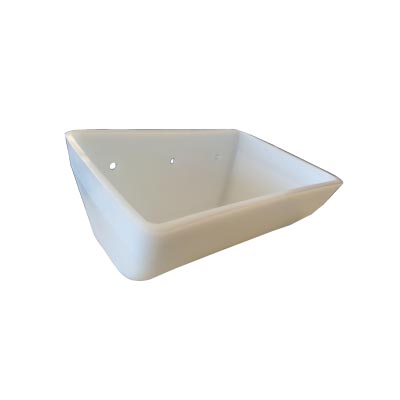

Plastic elevator buckets COLUMBUS

The plastic version of the COLUMBUS buckets follows the same 14 sizes and the same bolt-hole spacing, but is significantly lighter — available in polyethylene or nylon, making it suitable for lighter, less abrasive bulk products.

Deep Form, plastic

Click to enlarge

L	S	H	h	A	P	c	a	l	d	D	Holes	s	X-X (l)	Z-Z (l)	Polyethylene (kg)	Nylon (kg)	buckets/m
80	80	80	43	88	61	6	23	40	8	22	2	3.5	0.13	0.23	0.06	0.05	10
100	92	92	49	101	71	7	25	50	8	26	2	3.5	0.24	0.38	0.09	0.07	8
120	102	105	58	108	81	7	26	70	8	28	2	3.5	0.39	0.58	0.13	0.1	7
140	114	117	63	125	91	7	30	90	9	28	2	3.75	0.52	0.85	0.18	0.15	6.5
160	126	128	70	138	101	7	35	100	9	30	2	4.0	0.76	1.2	0.25	0.2	6
180	132	135	75	145	105	8	35	115	10	35	2	4.5	0.95	1.6	0.35	0.28	5.5
200	140	145	80	155	113	10	40	130	10	35	2	5.25	1.2	2.0	0.42	0.34	5
225	145	153	86	163	120	10	45	70	11	38	3	5.75	1.35	2.3	0.44	0.36	4.5
250	152	160	90	172	125	11	45	77	11	38	3	6.25	1.65	2.8	0.54	0.43	4.5
275	156	165	93	180	130	11	45	95	11	44	3	7.0	2.2	3.25	0.66	0.54	4
300	163	170	95	185	135	11	50	105	11	48	3	8.0	2.6	4.0	0.83	0.7	4
325	175	180	98	200	140	13	55	115	12.5	48	3	8.25	3.2	5.0	1.15	0.9	3.5
350	190	190	104	213	150	14	55	90	12.5	48	4	8.75	3.5	6.0	1.4	1.1	3.5
400	206	207	114	233	160	14	70	100	12.5	48	4	10.5	5.0	8.0	1.9	1.5	3

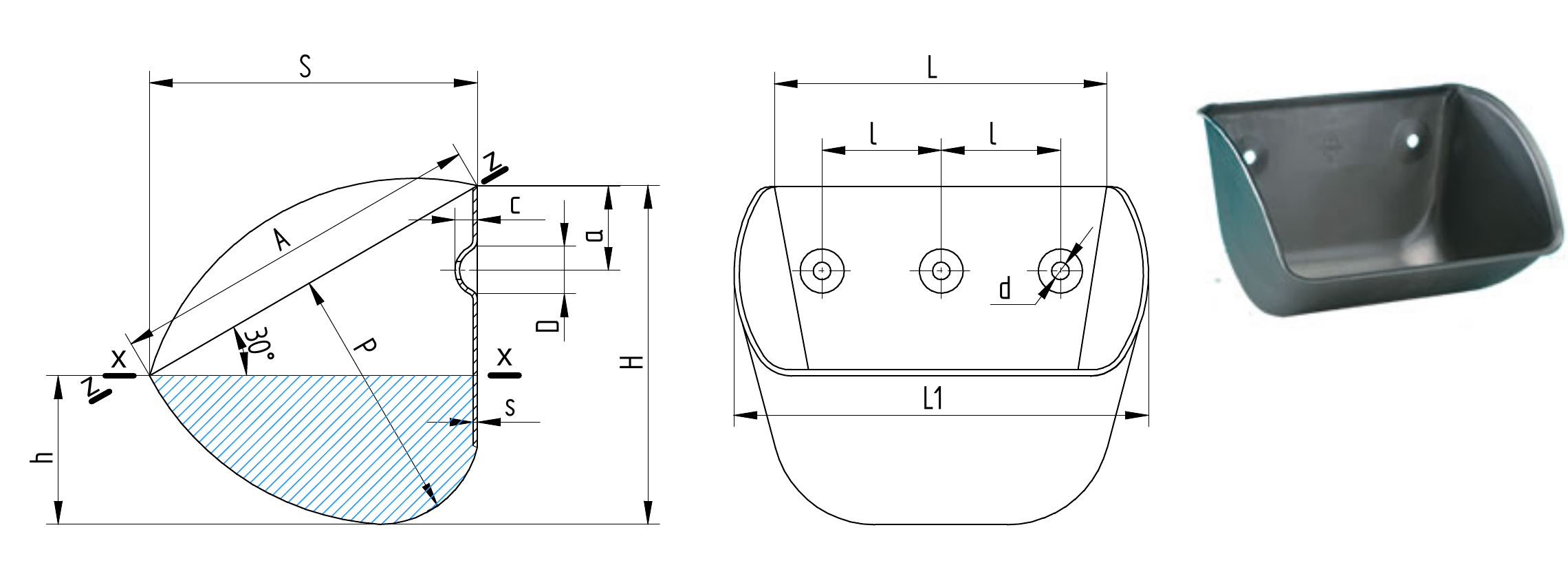

Open Form, plastic

L	L1	S	H	h	A	P	c	a	l	d	D	Holes	s	X-X (l)	Z-Z (l)	Polyethylene (kg)	Nylon (kg)	buckets/m
80	88	77	68	24	90	45	6	23	40	8	22	2	3.5	0.11	0.24	0.06	0.05	10
100	108	92	80	31	105	55	7	25	50	8	26	2	3.5	0.15	0.32	0.09	0.07	8
120	128	108	98	36	125	65	7	26	70	8	30	2	3.5	0.24	0.54	0.11	0.1	7
140	148	118	107	38	140	76	7	30	90	9	30	2	3.75	0.32	0.84	0.16	0.15	6.5
160	168	127	113	42	142	76	7	35	100	9	32	2	4.0	0.45	1.0	0.22	0.2	6
180	188	135	120	46	155	79	8	35	115	10	35	2	4.5	0.6	1.4	0.28	0.27	5.5
200	206	143	127	48	160	90	10	40	130	10	35	2	5.25	0.7	1.7	0.33	0.33	5
225	230	152	134	51	176	96	10	45	70	11	40	3	5.75	0.9	2.0	0.43	0.36	4.5
250	260	161	142	53	185	103	11	45	77	11	40	3	6.25	1.1	2.6	0.53	0.45	4.5
275	285	172	151	57	200	110	11	50	95	11	42	3	7.0	1.4	3.1	0.6	0.6	4
300	310	178	158	60	210	118	11	50	105	11	44	3	8.0	1.8	3.8	0.68	0.68	4
325	340	188	167	64	216	118	13	55	115	12.5	46	3	8.25	2.1	5.0	1.0	1.0	3.5
350	370	195	173	63	230	120	14	55	90	12.5	46	4	8.75	2.4	5.65	1.1	1.1	3.5
400	420	204	180	67	240	125	14	70	100	12.5	46	4	10.5	3.0	7.0	1.5	1.5	3

COLUMBUS specifications

Download PDF ↓

Frequently asked questions

What is the difference between deep and open form buckets?

Deep form has a larger volume at the same length L and is used for lighter, free-flowing materials. Open form is shallower and wider at the base (extra L1 dimension), with better emptying — preferred for stickier or coarser materials.

Metal or plastic buckets?

Metal COLUMBUS buckets are more resistant to abrasive materials and higher temperatures. Plastic buckets (polyethylene/nylon) are lighter, reduce the load on the elevator belt, and do not corrode — suitable for food, flour and lighter bulk products.

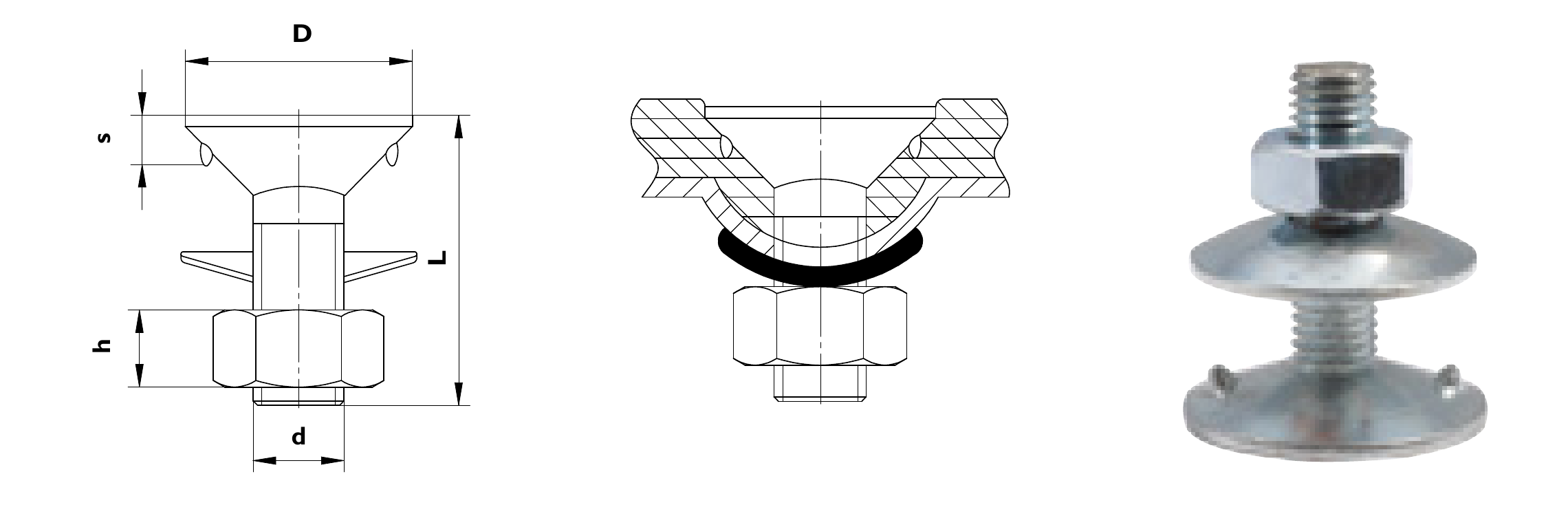

What is the bolt-hole pattern?

All four versions (metal/plastic, deep/open) follow the same number and layout of mounting holes for each size L, listed in the "Holes" column — 2 holes for smaller sizes, 3-4 for larger ones.

What is the price of COLUMBUS buckets?

Contact Nibora Ltd. for a quote based on the selected size and material.
