Overview
01
What are chains with attachments
Chains with attachments are standard roller chains DIN 8187/ISO 606 with additional attachment plates mounted on specific links for direct fastening of a load or mechanism — used in conveyors and transport systems. Nibora Ltd. offers 12 attachment types, each in several ISO sizes (06B-1 to 16B-1).
2
Attachment types
02

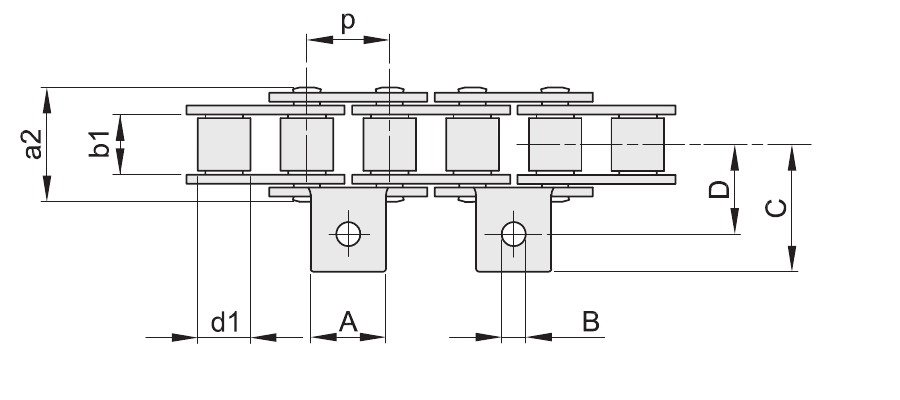

Attachment type A1/02
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | E | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 8,0 | 3,5 | 13,5 | 9,5 | 6,5 | 1,03 | 9,0 | 10,7 | 0,46 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 9,5 | 4,3 | 18,6 | 14,1 | 8,4 | 1,40 | 18,0 | 21,1 | 0,77 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 14,1 | 5,2 | 23,8 | 15,9 | 10,4 | 1,63 | 22,4 | 27,4 | 1,04 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 15,8 | 5,6 | 25,8 | 17,5 | 12,0 | 1,80 | 29,0 | 32,3 | 1,35 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 19,0 | 6,8 | 37,4 | 25,4 | 15,9 | 3,00 | 60,0 | 70,6 | 2,83 |
03
Attachment type K1/02
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | E | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 8,0 | 3,5 | 27,0 | 19,0 | 6,5 | 1,03 | 9,0 | 10,7 | 0,51 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 9,5 | 4,3 | 37,2 | 28,2 | 8,4 | 1,40 | 18,0 | 21,1 | 0,85 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 14,1 | 5,2 | 47,6 | 31,8 | 10,4 | 1,63 | 22,4 | 27,4 | 1,13 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 15,8 | 5,6 | 51,6 | 35,0 | 12,0 | 1,80 | 29,0 | 32,3 | 1,45 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 19,0 | 6,8 | 74,8 | 50,8 | 15,9 | 3,00 | 60,0 | 70,6 | 3,48 |
04
Attachment type A1/01
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | E | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 8,0 | 3,5 | 13,5 | 9,5 | 6,5 | 1,03 | 9,0 | 10,7 | 0,51 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 9,5 | 4,3 | 18,6 | 14,1 | 8,4 | 1,40 | 18,0 | 21,1 | 0,85 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 14,1 | 5,2 | 23,8 | 15,9 | 10,4 | 1,63 | 22,4 | 27,4 | 1,13 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 15,8 | 5,6 | 25,8 | 17,5 | 12,0 | 1,80 | 29,0 | 32,3 | 1,45 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 19,0 | 6,8 | 37,4 | 25,4 | 15,9 | 3,00 | 60,0 | 70,6 | 3,48 |
05
Attachment type K1/01
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | E | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 8,0 | 3,5 | 27,0 | 19,0 | 6,5 | 1,03 | 9,0 | 10,7 | 0,61 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 9,5 | 4,3 | 37,2 | 28,2 | 8,4 | 1,40 | 18,0 | 21,1 | 1,01 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 14,1 | 5,2 | 47,6 | 31,8 | 10,4 | 1,63 | 22,4 | 27,4 | 1,32 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 15,8 | 5,6 | 51,6 | 35,0 | 12,0 | 1,80 | 29,0 | 32,3 | 1,66 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 19,0 | 6,8 | 74,8 | 50,8 | 15,9 | 3,00 | 60,0 | 70,6 | 4,27 |
06
Attachment type A2/02
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | E | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 17,6 | 3,5 | 13,5 | 9,5 | 6,5 | 1,03 | 9,0 | 10,7 | 0,51 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 23,2 | 4,3 | 18,6 | 14,1 | 8,4 | 1,40 | 18,0 | 21,1 | 0,85 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 29,3 | 5,2 | 23,8 | 15,9 | 10,4 | 1,63 | 22,4 | 27,4 | 1,13 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 33,0 | 5,6 | 30,5 | 17,5 | 12,0 | 1,80 | 29,0 | 32,3 | 1,45 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 46,0 | 6,8 | 39,1 | 25,4 | 15,9 | 3,00 | 60,0 | 70,6 | 3,19 |
07
Attachment type K2/02
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | E | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 17,6 | 3,5 | 27,0 | 19,0 | 6,5 | 1,03 | 9,0 | 10,7 | 0,61 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 23,2 | 4,3 | 37,2 | 28,2 | 8,4 | 1,40 | 18,0 | 21,1 | 1,01 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 29,3 | 5,2 | 47,6 | 31,8 | 10,4 | 1,63 | 22,4 | 27,4 | 1,32 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 33,0 | 5,6 | 61,0 | 35,0 | 12,0 | 1,80 | 29,0 | 32,3 | 1,66 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 46,0 | 6,8 | 78,2 | 50,8 | 15,9 | 3,00 | 60,0 | 70,6 | 3,78 |
08
Attachment type M1/02
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 8,0 | 3,5 | 13,5 | 9,5 | 1,03 | 9,0 | 10,7 | 0,46 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 9,5 | 4,3 | 18,4 | 14,1 | 1,40 | 18,0 | 21,1 | 0,77 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 14,1 | 5,2 | 24,7 | 15,9 | 1,63 | 22,4 | 27,4 | 1,04 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 15,8 | 5,6 | 26,6 | 17,9 | 1,80 | 29,0 | 32,3 | 1,35 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 19,0 | 6,8 | 35,0 | 26,0 | 3,00 | 60,0 | 70,6 | 3,09 |
09
Attachment type MK1/02
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 8,0 | 3,5 | 13,5 | 9,5 | 1,03 | 9,0 | 10,7 | 0,51 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 9,5 | 4,3 | 18,4 | 14,1 | 1,40 | 18,0 | 21,1 | 0,85 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 14,1 | 5,2 | 24,7 | 15,9 | 1,63 | 22,4 | 27,4 | 1,13 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 15,8 | 5,6 | 26,6 | 17,9 | 1,80 | 29,0 | 32,3 | 1,45 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 19,0 | 6,8 | 35,0 | 26,0 | 3,00 | 60,0 | 70,6 | 3,48 |
10
Attachment type M1/01
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 8,0 | 3,5 | 13,5 | 9,5 | 1,03 | 9,0 | 10,7 | 0,51 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 9,5 | 4,3 | 18,4 | 14,1 | 1,40 | 18,0 | 21,1 | 0,85 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 14,1 | 5,2 | 24,7 | 15,9 | 1,63 | 22,4 | 27,4 | 1,13 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 15,8 | 5,6 | 26,6 | 17,9 | 1,80 | 29,0 | 32,3 | 1,45 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 19,0 | 6,8 | 35,0 | 26,0 | 3,00 | 60,0 | 70,6 | 3,48 |
11
Attachment type MK1/01
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 8,0 | 3,5 | 13,5 | 9,5 | 1,03 | 9,0 | 10,7 | 0,61 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 9,5 | 4,3 | 18,4 | 14,1 | 1,40 | 18,0 | 21,1 | 1,01 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 14,1 | 5,2 | 24,7 | 15,9 | 1,63 | 22,4 | 27,4 | 1,32 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 15,8 | 5,6 | 26,6 | 17,9 | 1,80 | 29,0 | 32,3 | 1,66 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 19,0 | 6,8 | 35,0 | 26,0 | 3,00 | 60,0 | 70,6 | 4,27 |
12
Attachment type M2/02
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 17,6 | 3,2 | 13,5 | 9,5 | 1,03 | 9,0 | 10,7 | 0,51 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 23,2 | 4,3 | 18,4 | 14,1 | 1,40 | 18,0 | 21,1 | 0,85 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 29,3 | 5,2 | 24,7 | 15,9 | 1,63 | 22,4 | 27,4 | 1,13 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 33,0 | 5,6 | 31,3 | 17,9 | 1,80 | 29,0 | 32,3 | 1,45 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 45,9 | 6,8 | 36,6 | 26,0 | 3,00 | 60,0 | 70,6 | 3,48 |
13
Attachment type MK2/02
| ISO | p (mm) | p (inch) | b1 | d1 | a2 | g | A | B | C | D | F | Min. break(kN) | Avg. break(kN) | Weight(kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06B-1 | 9,525 | 3/8” | 5,72 | 6,35 | 13,5 | 8,26 | 17,6 | 3,2 | 13,5 | 9,5 | 1,03 | 9,0 | 10,7 | 0,61 |
| 08B-1 | 12,7 | 1/2” | 7,75 | 8,51 | 17,0 | 11,81 | 23,2 | 4,3 | 18,4 | 14,1 | 1,40 | 18,0 | 21,1 | 1,01 |
| 10B-1 | 15,875 | 5/8” | 9,65 | 10,16 | 19,6 | 14,73 | 29,3 | 5,2 | 24,7 | 15,9 | 1,63 | 22,4 | 27,4 | 1,32 |
| 12B-1 | 19,05 | 3/4” | 11,68 | 12,07 | 22,7 | 16,13 | 33,0 | 5,6 | 31,3 | 17,9 | 1,80 | 29,0 | 32,3 | 1,66 |
| 16B-1 | 25,4 | 1” | 17,02 | 15,88 | 36,1 | 21,08 | 45,9 | 6,8 | 36,6 | 26,0 | 3,00 | 60,0 | 70,6 | 4,27 |
Specifications
Download PDF ↓Frequently asked questions
What is the difference between type A, K, M and MK attachments?
The types differ in the shape and placement of the attachment plate relative to the chain - A and M have a single plate, K and MK have a plate on both sides at certain links. The number (1 or 2) indicates how often the attachment repeats along the chain.
What is the price of chains with attachments?
Contact Nibora Ltd. for a quote based on the type and size you need.
